HARDNESS TESTER
High Precision Hardness Tester PHT-100
Features

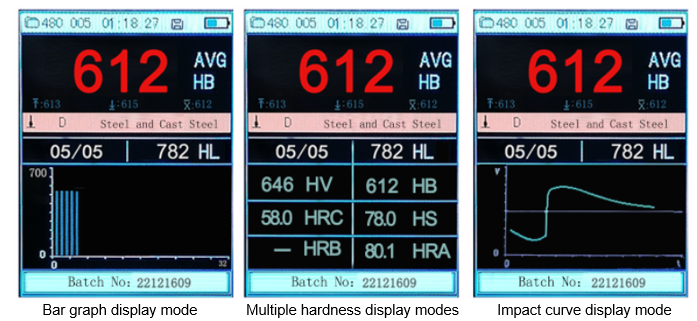

- Color display of 3inch screen showing all functions and parameters.
- Converts to all common hardness scales (HV,HB, HRC,HRB,HRA,HS).
- English displaying and easy and convenient menu operation.
- Powerful PC Software available and USB 2.0 interface & with the USB Protective Membrane.

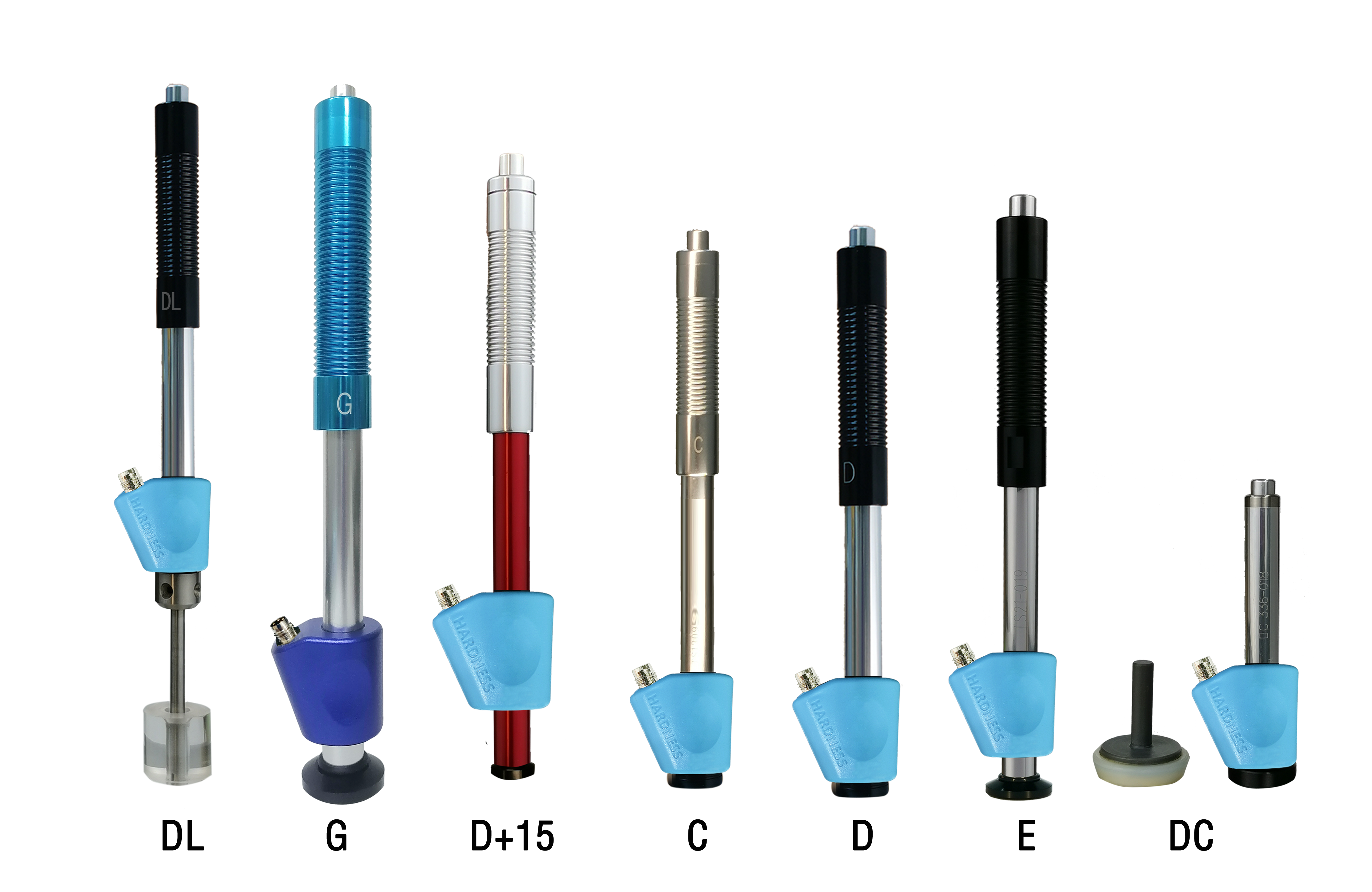

- 7 types of Impact Device optional, which don’t need to be recalibrated when changing them.
- Memory of 1200 groups data（impact times:32～1）.Lower limit setting and sound alarm.
- Material of “cast steel” is added; HB values can be read out directly when D/DC impact device is used to measure “cast steel” work piece.
- Printer be separated from main unit and copies of testing results can be printed as required.
- AA battery can easy change and transport.
- Inbuilt function of Software Calibration.
- With user-defined material curve function, for special materials such as forged steel, rolled steel, alloy steel or special processing metal materials, users can customize the measurement curve according to the actual measurement.
- PHT 100 with auto direction can make test easy.
- Standard according including : national standard: GB/T 17394.1-2014; GB/T1172-1999
- EU standard: DIN 50156-2007
- ASTM standard:ASTM A956(2012)
PHT-100 custom material curve function
Due to the different alloy ratios of alloy materials or due to special hot and cold processing techniques, the elastic modulus of some metal materials is different from that of the same kind of ordinary materials, which results in the testing of such materials, whether it is the national standard conversion table or the European standard. The conversion table cannot accurately convert the different hardness systems. The function of the custom material curve provides a means to adjust the conversion table according to the actual situation, which is conducive to expanding the applicability and accuracy of the instrument product.
- Auto Direction
- Customer Curve
- More Calibration
- Bluetooth
Specifications
Hardness scale | HL, HB, HRB, HRC, HRA, HV, HS |
Memory | 48～600 groups （impact times: 32～1） |
Measuring range | HLD（170～960）See below table 1 and table 2 |
Accuracy | ±4HLD (760±30HLD) error of displayed value |
4HLD (760±30HLD) repeatability of displayed value | |
Standard Impact Device | D |
Optional Impact Devices | DC/D+15/G/C/DL/E |
Max. Workpiece Hardness | 996HV(For Impact Devices D/DC/DL/D+15/C) |
646HB(For Impact Device G) | |
Min. Radius of Workpiece | Rmin = 50mm (with special support ring Rmin= 10mm) |
Min. Workpiece weight | 2~5kg on stable support |
Min. Workpiece thickness | 5mm (Impact Devices D/DC/DL/D+15) |
1mm (Impact Device C) | |
10mm (Impact Device G) | |
Min. thickness of hardened surface | 0.8mm |
Power | AA battery |
Continuous Working time | approx. 100 h (no back light off) |
Operating temperature | 0~40℃ |
Relative humidity | ≤90% |
Overall dimensions | 120*60*31mm (main unit) |
Other Size and Type Available on Request.
Standard Configuration
Seq | Name | Qty | Remark |
1 | Main Unit | 1 | Standard configuration |
2 | Impact Device Type D | 1 | Standard configuration |
3 | Test Block Type D | 1 | Standard configuration |
4 | Cleaning Brush | 1 | Standard configuration |
5 | Supporting Ring | 1 | Standard configuration |
6 | Communication Cable | 1 | Standard configuration |
7 | Manual | 1 | Standard configuration |
8 | Carrying Case | 1 | Standard configuration |
9 | DataPro Software(USB) | 1 | Standard configuration |
11 | Bluetooth Printer | 1 | Optional configuration |
Leeb Hardness Tester PHT-111
Advantages
- Largest screen OLED screen ,it is the highest brightness display showing all functions and parameters, easy read and operate, also can save lots of energy .One of the largest screen of Leeb hardness tester.
- Two hardness scale dual-display in the screen.
- Measuring direction in 360° and add the auto measure direction to make test easy and precision.
- Add four new hardness scales, HRA, HB for D impact device of alloy tool steel; HV for cast aluminum alloy
- Add New user material function, to meet the need of user can test the special material.
- Test at any angle, even upside down.
- Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
- Seven impact devices are available for special application. Automatically identify the type of impact devices.
- Large capacity memory could store 600 groups (Relative to average times32～1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
- Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
- Battery information indicates the rest capacity of the battery and the charge status.
- User calibration function.
- USB port with the PC humanity multi-functions data proceeding software.
- Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
- Li rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 200 hours (EL off and no printing).
- Auto power off to save energy.
- Excellent after-sale service system for high quality products—3 years’ guarantee and all life maintenance. Easy to buy and comfortable to use.
- Standard according including: national standard: GB/T 17394.1-2014; GB/T1172-1999
- EU standard: EN ISO 16859-2016
- ASTM standard: ASTM A956(2012)
Main Application
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessel, steam generator and other equipment
- Heavy work piece
- The installed machinery and permanently assembled parts
- Testing surface of a small hollow space
- Material identification in the warehouse of metallic materials
- Rapid testing in large range and multi-measuring areas for large-scale work piece
Technical Specification
- Measuring range:HLD(170～960)HLD
- Measuring direction:360drgree.
- Accuracy:+/- 6 HLD
- Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
- Display:OLED screen ,3 inch ,one of the biggest screen.
- Data memory: 600 groups max.(relative to impact times 32～1)
- Printing paper: width is (57.5±0.5)mm, diameter is 30mm
- Battery pack: 7.4V Li battery
- Battery charger: 9V/500mA
- Continuous working period:about 200 hours(With backlight off, no printing)
- Communication interface:USB2.0
- Outline dimensions:225mm×85mm×35mm
- Other Size and Type Available on Request.
Detail Information
Hardness Scale: | HL, HB, HRB, HRC, HRA, HV, HS | Measuring Range: | HLD（170～96）HLD |
Warranty: | 2 Years | Memory: | 600 Groups Max.（relative To Impact Times 32～1） |
Dimension: | 225mm*85mm*35mm | Communication Interface: | USB2.0 |
Power: | 7.4V Li Battery | ||
High Light: | PHT-111leeb hardness tester PHT 111leeb hardness tester oled screen leeb hardness tester | ||
Other Size and Type Available on Request.
Standard Configuration
No. | Item | Quantity | Remarks | |
Standard Configuration | 1 | Main Unit | 1 | |
2 | D type impact device | 1 | With cable | |
3 | Standard test block | 1 | ||
4 | Cleaning brush (I) | 1 | ||
5 | Small support ring | 1 | ||
6 | Battery Charger | 1 | 9V 500mA | |
7 | Paper for printing | 1 | ||
8 | Manual | 1 | ||
9 | Instrument case | 1 |
