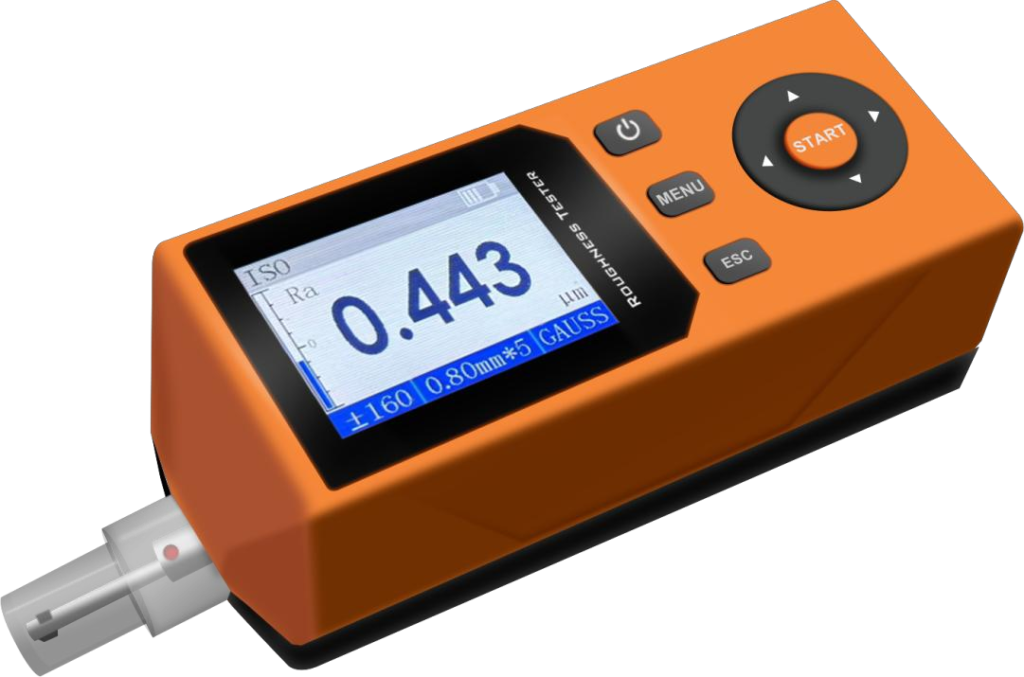

PORTABLE DIGITAL SURFACE ROUGHNESS TESTER
PORTABLE DIGITAL SURFACE ROUGHNESS TESTER
Large range, multi-parameter, 19 roughness parameters can be measured: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, RPc, Ry, Rmax, R3z, Rk, Rpk, Rvk, Mr1, Mr2;
Mechatronic design, small size, light weight, easy to carry, easy to operate
Using stylus with half-surrounded guide improves the measuring range
Gauss，D_P，RC，PC_RC Filter Method;
Compatible with ISO, DIN, ANSI, JIS four standards;
The display is full of information, intuitive, and can display all parameters and graphs;
The display LCD adopts the popular 2.0' IPS display with high brightness and no dead space, suitable for various situations;
Adopting 1000mAh lithium-ion rechargeable battery, it can work for a long time without memory effect;
Large capacity data storage, can store 500 sets of raw data and waveforms;
The automatic shutdown function and low-power hardware and software design make the instrument work for a long time, which is suitable for all kinds of on-site use;
Can connect to a dedicated Bluetooth printer to print measurement reports in real time;
The sensor has a protection device that effectively protects the sensor stylus and ensures measurement accuracy;
Using low-power ARM microprocessor for data calculation and processing, adopting high-precision op-amps and ADC, greatly improving the measurement accuracy and calculation velocity;
Support waveform display and rate curve;
For Parameters check the Catalgoue below.
